GLORY 高性能镍镉电池专为工业大功率应用而设计。该电池适用于各种恶劣环境，温度范围广，抗电气和机械滥用。
GLORY KPX系列超高放电率由烧结板制成。该电池专为需要可靠性和极短时间内极高放电电流的所有应用而设计。
需要 1 秒至 30 分钟放电时间的精密应用，例如发动机启动、燃气轮机发电机和直流电机。
| 品牌 | '' |
| 模型 | KPX系列 |
| 类型 | 烧结板镍镉 |
| 符合标准 | IEC 60623 |
| 正板结构 | 镍 |
| 负极板构造 | 镉 |
| 每节电池标称电压 | 1.2V |
| 每节电池浮充 | 每个电池 1.35 伏 |
| 每个细胞的高速率（升压） | 每个电池 1.40 伏 |
| 电解质类型 | 氢氧化钾 |
| 比重 | 1.20 +/- 0.01 |
| 每个单元的重量 | 参考产品目录 |
| 每个单元格的尺寸 | 参考产品目录 |
| 机架配置 | 2 步，1 层 |
| 机架材料 | 环氧涂层角铁 |
| 电池盒 | 半透明聚丙烯 |
| 电池设计寿命 | 8-10年，浮充待机状态 |
| 配件 | 包括 |

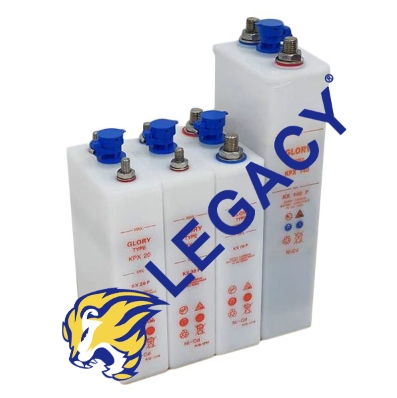

GLORY High performance Nickel Cadmium Battery is designed for industrial high power application. The battery is suitable for a wide variety of harsh environment at wide temperature range, resistance to electrical and mechanical abuse.
GLORY KPX Series Ultra High Discharge Rate is made of sintered plate. The battery is designed for all those applications where highest reliability and extreme high discharge current in very short period are required.
Precision applications where discharge period between 1 second to 30 minutes are required such as engine starting, gas turbine power generator and DC motor.
| Brand | ‘ GLORY ‘ |
| Model | KPX Series |
| Type | Sintered Plate Nickel Cadmium |
| Standard compliance | IEC 60623 |
| Positive plate construction | Nickel |
| Negative plate construction | Cadmium |
| Nominal voltage per cell | 1.2V |
| Float charge per cell | 1.35 volt per cell |
| High rate (boost) per cell | 1.40 volt per cell |
| Type of electrolyte | Potassium Hydroxide |
| Specific gravity | 1.20 +/- 0.01 |
| Weight per cell | Refer to product catalog |
| Dimension per cell | Refer to product catalog |
| Rack configuration | 2 steps, 1 tiers |
| Rack material | Epoxy coated angle iron |
| Battery container | Translucent polypropylene |
| Battery designed life | 8-10 years, under float charged standby condition |
| Accessories | Included |
